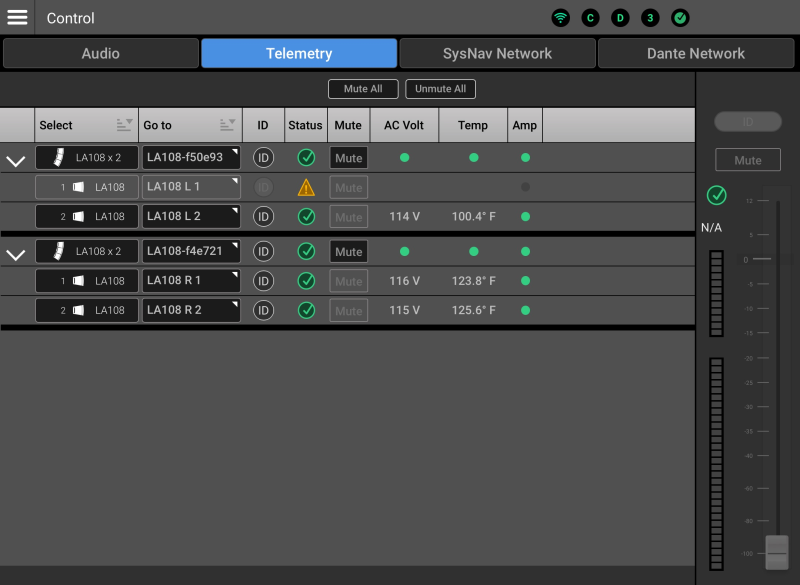

Telemetry Tab

This area of the list displays Status information for the connected loudspeakers.

• AC Volt

  • Loudspeakers – Displays the AC voltage the device is receiving. If the mains voltage is outside the acceptable range, the text will change color to red.

  • Arrays – Green means that all array members are connected to acceptable mains voltage. Red means that one or more array members connected to mains voltage is outside the acceptable range.

• Temp

  • Loudspeakers – Displays the amplifier module temperature. If the temperature is outside the acceptable range, the text will change color to red.

  • Arrays – Green means that all array members are operating within acceptable temperature limits. Red means that one or more array members are reporting temperatures outside the acceptable range.

• Amp

  • Loudspeakers – Turns from green to red to indicate that a device is operating outside its over current limits or that another fault associated with the amplifier section has been detected.

  • Arrays – Green means that no over-current or amplifier faults are reported by array members. Red means that one or more array members is reporting over-current or amplifier faults.

• Preset – This is a placeholder field for a future release and is not functional at this time.
